Short Circuits CD4001

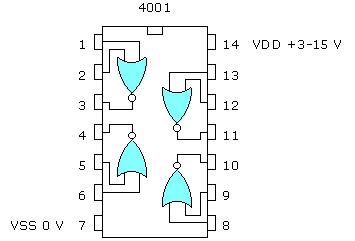

The CD4001 has four separate 2-input NOR gates which you can use independently.It also has hi-impledance input and can use widely than 74LS02.

Bounceless switch

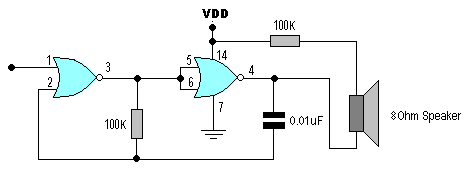

GATED TONE SOURCE



This circuit generate output tone at about 1KHz whane pin 1 is “high”

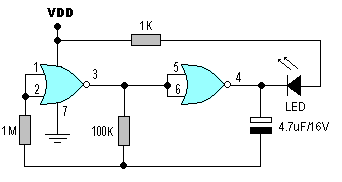

LED Flasher
